C5T

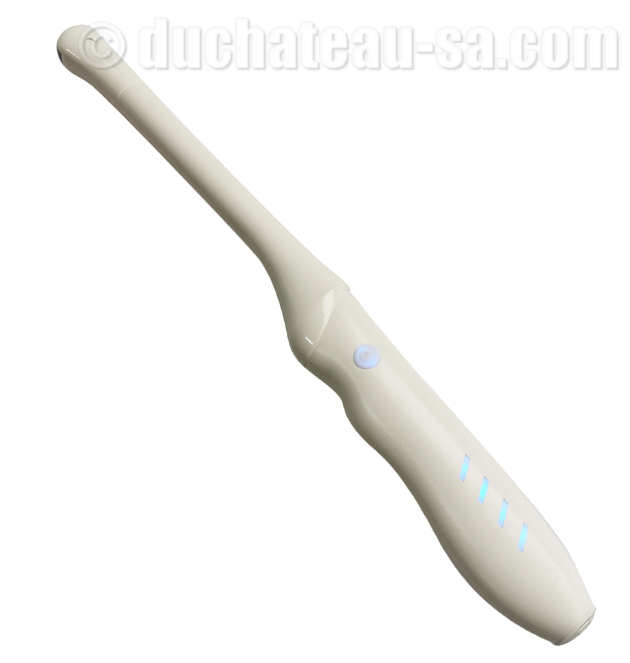

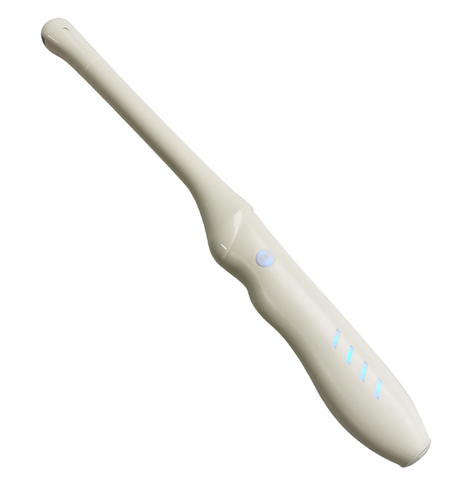

UProbe C5C Convex Wireless Ultrasound Probe

C5T

Application Range: Transvaginal
Emergency Medicine, Quick Assessment, Gyn, Point of Care

UProbe-5CT Features:
-Small. Compact size. Easy to carry.
-Wireless. No cables. Work freely.Wireless-charger.
-Waterproof design, convenient for sterilization.
-Fast and Simple. Easy data transfer.

Specifications
-Scanning mode: Electronic array
-Display mode: B, B/M, color doppler version with B+Color, B+PDI, B+PW
-Probe element: 128
-Channel of RF circuit board: 32
-Probe frequency and scan depth, scan angle, head radius:
 6.5MHz/8MHz, 40/60/80/100mm, 149°, 13mm
-Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
-Cineplay: auto and manual, frames can set as 100/200/500/1000
-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
-Measure: Length, Area, Angle, heart rate, Obstetrics
-Image save: jpg, avi and DICOM format
-Image frame rate: 18 frames / second
-Battery working time: 3 hours(according to whether keep scan)
-Battery charge: by USB charge or wireless charge, take 2 hours
-Dimension: 270×60×20mm
-Weight: 250g
-Wifi type: 802.11g/20MHz/5G/450Mbps
-Working system: Apple iOS and Android
